特点 Due to the package design, 62-119 has wide viewing angle, low power consumption and white LEDs are devices which are materialized by combing blue chips and special phosphor. This feature makes the LED ideal for light guide application.
Series Edge Type Product
Dimension (mm) 7.0x2.0x0.7
Power(W) 0.36
Color White
Wavelength(nm) / CIE(x,y) X=0.29, Y=0.29
Viewing Angle 120
Iv(lm,mW) 47-51
020-31141067
产品详情

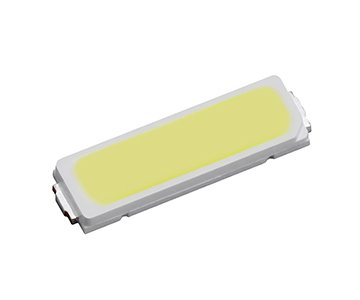

BL-7020NZ1T

Due to the package design, 62-119 has wide viewing angle, low power consumption and white LEDs are devices which are materialized by combing blue chips and special phosphor. This feature makes the LED ideal for light guide application.

_20220505225003 (2).png

• Top View White LEDs
• Wide viewing angle
• Soldering methods: IR reflow soldering
• Pb-free
• The product itself will remain within RoHS compliant version.
• Compliance with EU REACH.
• Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).


_20220505225003 (1).png

• Backlight for LCD Monitor/TV
• Light pipe application
• Indicator and backlight in office and family equipment
• General use


BL-7020NZ1TN3C-L1OFD3259D2832_DataSheet_Preliminary_V1.pdf
