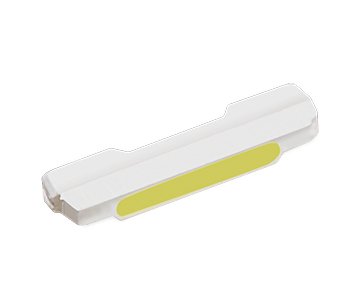

Side View Product/BL-3804GN1P

分享
微信
新浪微博
QQ
QQ空间
豆瓣网
百度贴吧
特点 Due to the package design, 3804 has wide viewing angle, low power consumption and white LEDs are devices that are materialized by combing blue chips and special phosphor. This feature makes the LED ideal for light guide application.
Series Side View Product
Dimension (mm) 3.8x0.9x0.4
Power(W) 0.06
Color White
Wavelength(nm) / CIE(x,y) X=0.295, Y=0.28
Viewing Angle 120
Iv(lm,mW) 6.25-9.00
020-31141067
产品详情

BL-3804GN1P

Due to the package design, 3804 has wide viewing angle, low power consumption and white LEDs are devices that are materialized by combing blue chips and special phosphor. This feature makes the LED ideal for light guide application.

_20220505225003 (2).png

• Side view white LED.
• White SMT package.
• Lead frame package with individual 2 pins.
• Wide viewing angle
• Soldering methods: IR reflow soldering
• Pb-free
• The product itself will remain within RoHS compliant version.
• Compliance with EU REACH.
• Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).


_20220505225003 (1).png

• LCD Backlight
• Mobile phones
• Indicators
• Illuminations
• Switch Lights



BL-3804GN1PM2C-XXXXXXXXXXXX_DataSheet_V1.pdf
