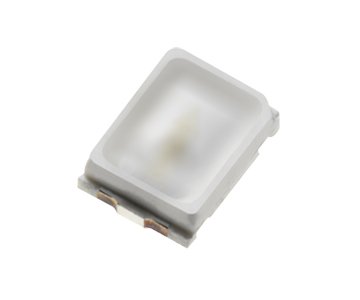

Local Dimming Product/BL-2016NN1T

分享
微信
新浪微博
QQ
QQ空间
豆瓣网
百度贴吧
特点 Due to the package design, 2016 has wide viewing angle, low power consumption and white LEDs are devices which are materialized by combing blue chips and special phosphor. This feature makes the LED ideal for light guide application.
Series Direct type Product
Dimension (mm) 2.0x1.6x0.55
Power(W) 0.03
Color Blue
Wavelength(nm) / CIE(x,y) 447.5~457.5
Viewing Angle 120
Iv(lm,mW) 16-30(mW)
020-31141067
产品详情

BL-2016NN1T

Due to the package design, 2016 has wide viewing angle, low power consumption and white LEDs are devices which are materialized by combing blue chips and special phosphor. This feature makes the LED ideal for light guide application.

_20220505225003 (2).png

• Top View White LEDs
• Wide viewing angle 120o
• Soldering methods: IR reflow soldering
• Pb-free
• The product itself will remain within RoHS compliant version.
• Compliance with EU REACH.
• Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).


_20220505225003 (1).png

• Backlight for LCD Monitor/TV
• Light pipe application
• Indicator and backlight in office and family equipment
• General use


BL-2016NN1TBW-E1628D2630_DataSheet_Preliminary_V1.pdf
