Surface Mount PLCC LED (Reflector) / Top View PLCC6 / HNB2727W

分享
微信
新浪微博
QQ
QQ空间
豆瓣网
百度贴吧
特点 Display with any size board with 3 in 1 full color SMD LEDs which offer smaller pixel pitch between two LEDs to create a high resolution and better contrast with its black body design.

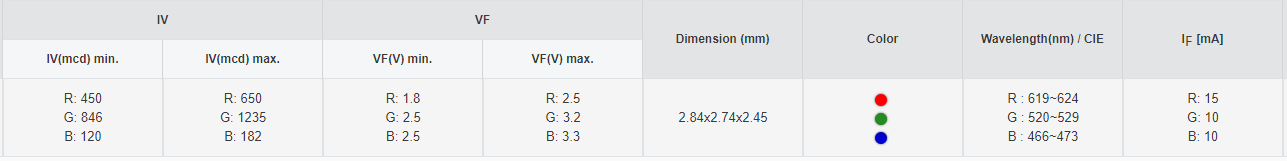

Dimension (mm) 2.84x2.74x2.45
Color Brilliant Red，Brilliant Green，Blue
Wavelength(nm) / CIE(x,y) R : 619~624 G : 520~529 B : 466~473
Viewing Angle 110
IF [mA] R: 15 G: 10 B: 10
020-31141067
产品详情

HNB2727W

The HNB2727W-OS05 SMD LED package provides a perfect solution when users need a clear view of signage.
Display with any size board with 3 in 1 full color SMD LEDs which offer smaller pixel pitch between two LEDs to create a high resolution and better contrast with its black body design.


_20220505225003 (2).png

  • Unique packaging technology provides better moisture resistance for outdoor use.

  • Various options for color mixture including white.

  • Good color fidelity and brightness uniformity across the viewing angle.

  • RoHS compliant.

  • Black body provides better contrast for the display.

  • Compliance with EU REACH

  • Compliance Halogen Free .(Br <900 ppm .Cl <900 ppm . Br+Cl < 1500 ppm)

_20220505225003 (1).png

  • Outdoor signage display.

  • Outdoor decorating and entertainment design.

  • Gaming equipment.

  • Indicator and backlighting for all consumer electronics.



HNB2727W-OS05.pdf
