3mm Oval Type / 3474

分享
微信
新浪微博
QQ
QQ空间
豆瓣网
百度贴吧
特点 • This precision optical performance oval LED is specifically designed for passenger information signs. • This lamp has matched radiation patterns with yellow, red or green mixing color applications.

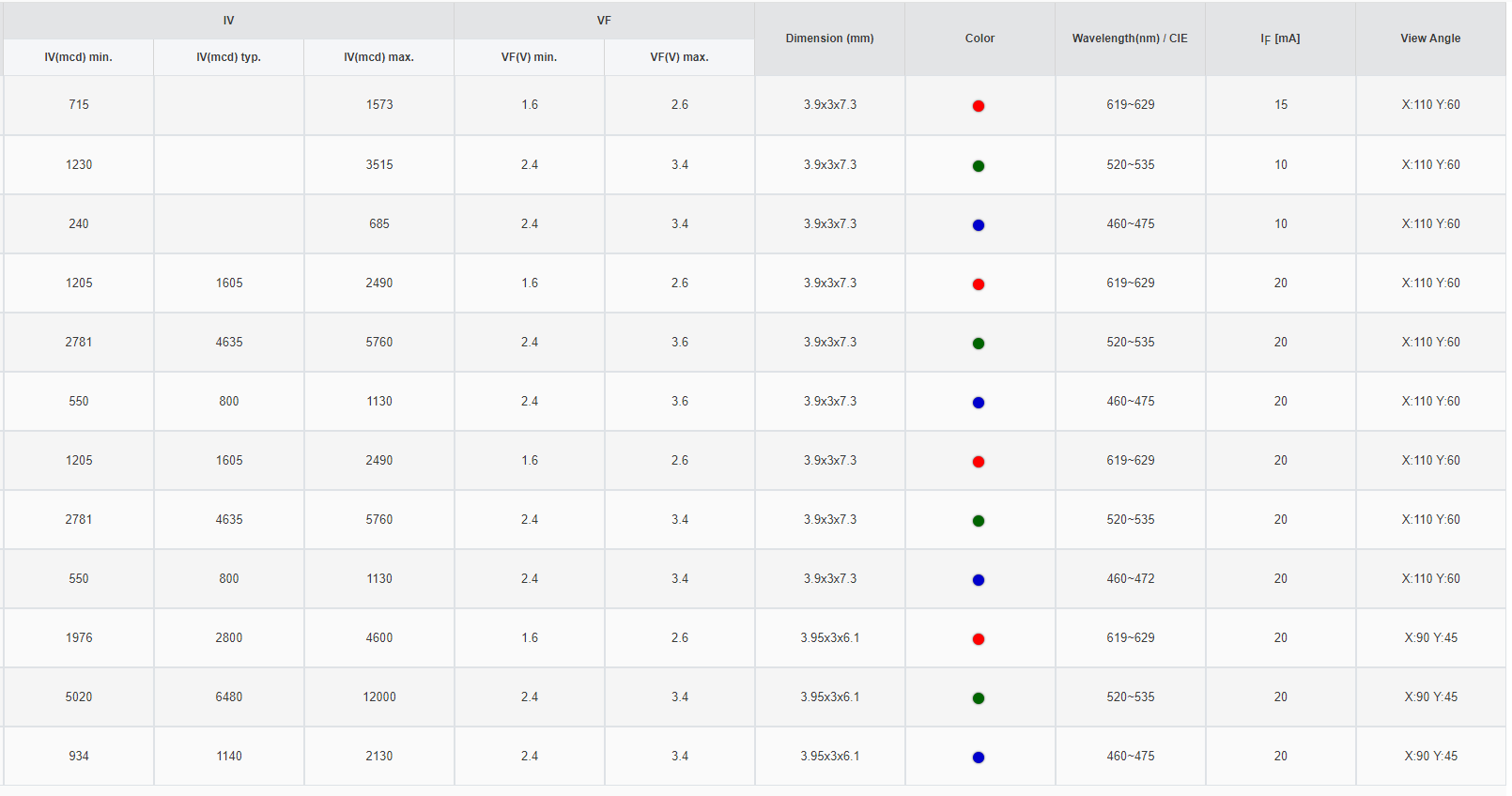

Dimension (mm) 3.9x3x7.3
Color Red,Green,Blue
Wavelength(nm) / CIE(x,y) 619~629、520~535、460~475
Viewing Angle X:110 Y:60
IF [mA] 15、10、20
020-31141067
产品详情

3474

• This precision optical performance oval LED is specifically designed for passenger information signs.
• This lamp has matched radiation patterns with yellow, red or green mixing color applications.

_20220505225003 (2).png

  • High luminous intensity output

  • Oval Shape

  • Well defined spatial radiation Wide viewing angle (2θ1/2) : 110° / 60°

  • UV resistant epoxy

  • The product itself will remain within RoHS compliant version

  • Compliance with EU REACH

  • Compliance Halogen free. (Br <900 ppm,Cl<900 ppm,Br+Cl <1500 ppm)



_20220505225003 (1).png

  • Color Graphic Signs

  • Message boards

  • Variable message signs (VMS)

  • Commercial outdoor advertising

3mm Oval Type _ 3474 _ LED产业的领导厂商 _ 亿光电子.png

3474BARR-MS(DLE-0009297).pdf
