Analog
The analog CLS series are single channel Si photodiode sensitive to red, green and blue spectrum in miniature SMD package. Everlight color sensor series product is the good effective and low cost solution to white color balance, color detection and color management applications
• Surface-mount plastic package
• High sensitivity for Red,green and Blue light source.
• Good stable analog output with temperature shift
• Operating temperature performance -40℃ to 85℃
• Active area: 1.8m㎡
• RoHS compliant and Pb free package
• Color adjustment for LED back light system
• Color adjustment for LED projector
• Color detection
• White balance adjustment
Specification
| Product | DataSheet | Discription | Dimension (mm) | Supply Voltage,Vdd(V) | Peak Sensitivity Wavelength,λp(nm) | Reverse light current Ee=100lux), IL(uA) |
|---|---|---|---|---|---|---|

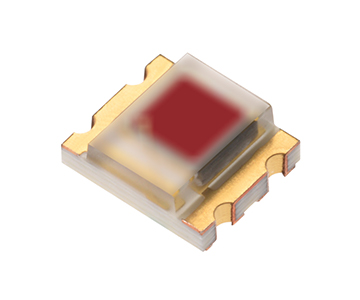

 CLS15-22C/L213R/TR8 |  | Color Light Sensor, PD, COB4, 1210 | 3.2x2.7x1.1 | 0.5~1.3 | 620 | 0.091 |

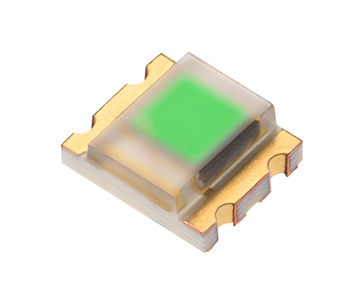

 CLS15-22C/L213G/TR8 | | Color Light Sensor, PD, COB4, 1210 | 3.2x2.7x1.1 | 0.5~1.3 | 550 | 0.082 |

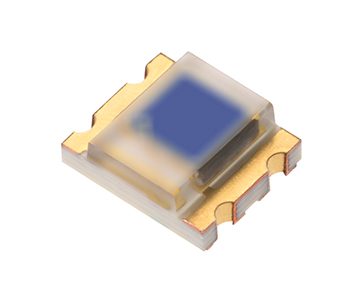

 CLS15-22C/L213B/TR8 | | Color Light Sensor, PD, COB4, 1210 | 3.2x2.7x1.1 | 0.5~1.3 | 470 | 0.046 |
